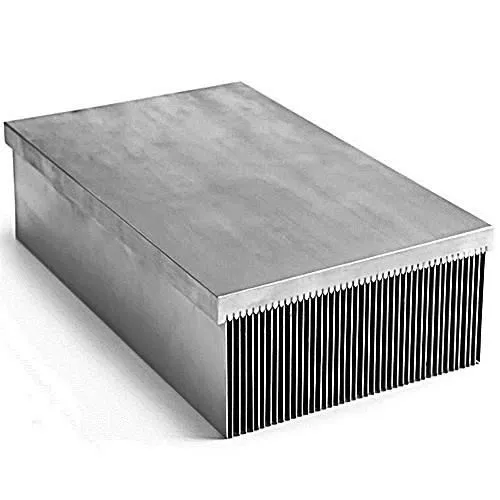

Bonded Fin Heat Sink

High quality bonded fin heat sink

1.Product Introduction

Bonded fin heat sinks yog ib qho kev sib dhos ntawm lub hauv paus grooved nrog ib tus neeg fins sib koom ua ke rau hauv cov grooves. Hom kev kub dab dej no tso cai rau cov fins ntau dua thiab cov fin nam piv ntau dua li qhov ua tau zoo nrog cov txheej txheem extrusion, zoo heev txhim kho thermal kev ua tau zoo piv rau extruded cua sov dab dej vim qhov chaw saum npoo. Bonded fin hom tuaj yeem tsim ua ob peb txoj hauv kev. Grooved puag yuav extruded, tuag cam khwb cia, los yog machined. Machining tuaj yeem tso cai rau cov yam ntxwv ntxiv xws li cov kav dej kub, cov vapor chambers, lossis cov khoom siv hluav taws xob graphite. Fins yog punched los ntawm coil Tshuag los yog txiav los ntawm nyias phaj Tshuag. Cov fins tau muab tso rau hauv lub hauv paus grooves thiab koom nrog epoxy, brazing, los yog soldering.

Schematic los ua ke saib Bonded fin heat sink los ua ke

2.Product Paub meej

Hauv cov ntawv thov hluav taws xob xav tau heev uas cov cua kub tseem ceeb tau tsim nyob rau hauv ib lub ntim me me, Methode's bonded-fin designs tuaj yeem ua tau raws li koj cov kev xav tau ntim los ntawm kev ua kom cov cua sov hauv qhov chaw uas tsis muaj qhov ntim ntau, txo cov cua sov los ntawm tsib caug mus rau rau caum-rau feem pua. Bonding fins mus rau lub dab dej kub tshem tawm qhov tsim-txhim kho qhov sib txawv ntawm qhov sib piv pom nyob rau hauv cov dab dej kub extruded.

· Aluminium, tooj liab lossis sib xyaw hlau sib txuas-fin sib dhos

· Copper puag thiab aluminium fin

· Fins fabricated los ntawm cov ntawv hlau los yog extrusion

· Ntau qhov chaw saum npoo

· Tsawg thermal kuj

3. Specification

4.Qhov Nta

4-1. Aluminium 6061 rau puag thiab Aluminium 1100 rau fins.

4-2. Cov thermal conductivity zoo heev

4-3. Zoo kawg

5. Kev lag luam zoo

1. Ib qho kev daws teeb meem

2. SGS & ISO audited

3. Muaj kev tsim khoom

4. Muaj peev xwm muab tau

6. Kev xa khoom, Shipping

7.FAQ

1. Puas yog koj lub tuam txhab lag luam lossis cov chaw tsim khoom?

Peb yog Tuam Tshoj cov chaw tsim khoom ntawm customizing ntau yam thermal tov khoom.

2. Cov yam ntxwv dab tsi ua rau lub heatsink zoo?

High quality nto; Zoo aerodynamics; Zoo thermal hloov nyob rau hauv lub heats number case; Zoo meej flatness ntawm qhov chaw sib cuag; Txoj kev mounting zoo.

3.Koj siv hom kev thauj mus los li cas?

Cua thauj, UPS, DHL, FedEx, hiav txwv shipping thiab lwm yam ...

4.Koj puas tuaj yeem muab kev pabcuam OEM?

Tseeb, peb tuaj yeem, cov txheej txheem kev pabcuam feem ntau suav nrog 5 cov kauj ruam:

Kauj Ruam 1: Thov xa peb cov duab kos duab lossis qauv ntawm lub cev.

Kauj Ruam 2: Peb tus engineer yuav ua pwm / tuag tsim raws li koj daim duab lossis qauv.

Kauj Ruam 3: Qhia koj cov ncauj lus kom ntxaws ob qho tib si pwm / tuag thiab cov khoom.

Kauj Ruam 4: Ntsuam xyuas peb cov khoom kom paub meej zaum kawg.

Kauj Ruam 5: Cov khoom loj tom qab qhov kev pom zoo kawg.

Cim npe nrov: Bonded Fin Heat Sink, Tuam Tshoj Bonded Fin Heat Sink manufacturers, lwm tus neeg, Hoobkas
